Plumbing Systems in Building Construction

Plumbing systems play a crucial role in building construction, providing essential services for water supply and waste disposal. The availability of a sufficient quantity of water at necessary locations is vital to meet the various needs of building occupants. To ensure that plumbing systems function effectively, it is essential to compute water needs accurately and design proper drainage facilities to handle wastewater efficiently. This article delves into the various types of plumbing pipes used in construction, focusing on their specific purposes, materials, and characteristics.

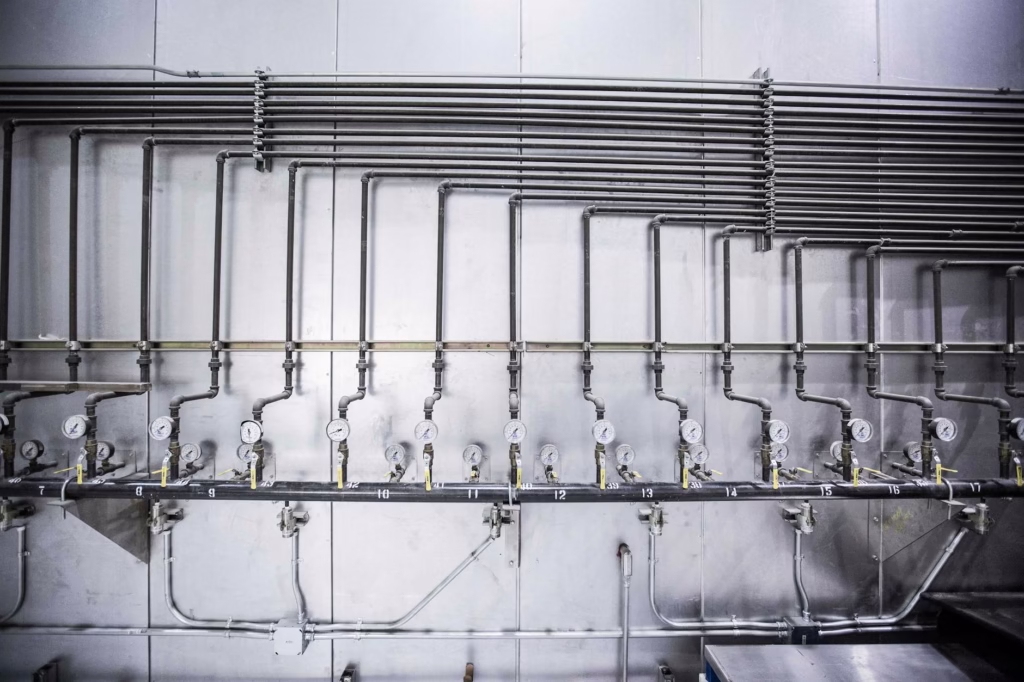

Detailed view of an industrial plumbing system featuring multiple pressure gauges and steel pipes.

What is a Plumbing System?

A plumbing system comprises a network of pipes, fittings, and appliances used for water supply and drainage within a building. This system can be divided into two primary categories: supply pipes (or service pipes) and drain pipes (or waste disposal pipes). Each type of pipe serves a specific function and is made from different materials suited to its application.

Types of Plumbing Pipes

A. Supply Pipes or Service Pipes

Service pipes connect the distribution main of water supply to the plumbing system of a house. These pipes are essential for transporting clean water for various uses. The main types of service pipes include:

  1. Copper Pipes
    Copper pipes are ideal for areas where groundwater is highly corrosive. They possess excellent corrosion resistance, strength, and ductility. Available in long lengths, copper pipes can withstand high pressure, making them suitable for industrial applications as well. There are two types of copper pipes:
  • Heavy Gauge: Used in high-pressure situations, such as the primary pipes leading from the distribution main.
  • Light Gauge: Suitable for lower pressure applications, typically found in internal domestic plumbing.
  1. Galvanized Iron (GI) Pipes
    GI pipes are more economical compared to copper. While they are strong, they are prone to corrosion in soft or acidic water conditions. Therefore, they are best used in areas where the risk of corrosion is minimal, particularly in hard water regions. Regular maintenance, such as hammering to remove scale buildup, is necessary to ensure their longevity.
  2. Polythene (Plastic) Pipes
    Polythene pipes, also known as plastic pipes, are primarily used for cold water services. They have gained popularity due to their numerous advantages:
  • Corrosion resistance
  • Cost-effectiveness
  • Lightweight design
  • Easy installation
  • Resistance to bacterial scale
    However, they are limited to cold water applications, as they cannot withstand high temperatures.
  1. Lead Pipes
    Historically, lead pipes were favored for their corrosion resistance and flexibility. However, due to health concerns regarding lead poisoning from contaminated water, their use is now discouraged.

B. Drain Pipes or Waste Disposal Pipes

Waste disposal pipes are responsible for carrying wastewater generated from various sources within a home, such as kitchens and bathrooms. Different types of drainage pipes include:

  1. Soil Pipe
    Soil pipes transport human excreta from toilets to septic tanks. They are not connected to any other pipes except for vent pipes and should have a diameter of at least 100mm.
  2. Wastewater Pipe
    Wastewater pipes carry liquid waste from sinks, kitchens, and washbasins. These pipes typically have a diameter ranging from 30 to 50mm for horizontal installations and 75mm for vertical setups.
  3. Rainwater Pipe
    Rainwater pipes collect rainwater from roofs during rainfall, preventing water accumulation on rooftops. A diameter of 75mm is commonly used for efficient rainwater disposal, which can also be repurposed for gardening or irrigation.
  4. Vent Pipe
    Vent pipes facilitate the exit of foul gases into the atmosphere and are essential for proper ventilation. These pipes are generally 50mm in diameter and must be installed at least 1 meter above the roof level.
  5. Anti-Siphonage Pipe
    Designed to preserve the water seal in traps within the drainage system, anti-siphonage pipes prevent backflow. The diameter of these pipes is typically 50mm when connected to soil pipes and 40mm when connected to wastewater pipes.

Drainage Pipes by Material

Drainage systems utilize various materials for pipes, each offering unique advantages:

  1. Concrete Pipes
    Concrete pipes are used for heavy drainage needs, especially in large diameters. Smaller diameter pipes may be used for lesser flows. These pipes are precast and do not require reinforcement.
  2. Cast Iron Pipes
    Made by pouring molten iron into sand molds, cast iron pipes are suitable for rainwater and wastewater disposal. They are only available in shorter lengths, making them less versatile.
  3. Stoneware Pipes
    Manufactured in ceramic industries through high-temperature burning of soft soil, stoneware pipes are primarily used for underground drainage. Installation requires skilled labor due to their fragility.
  4. PVC Pipes
    Polyvinyl chloride (PVC) pipes are widely used in both water supply and drainage systems. They are economical, easy to maintain, and resistant to corrosion, making them ideal for soil and kitchen waste pipes.
  5. Asbestos Cement Pipes
    Asbestos cement pipes are cost-effective but have a tendency to break easily. They are commonly used for vent pipes, soil pipes, and rainwater pipes.

Conclusion

Selecting the appropriate type and material of plumbing pipes is essential for ensuring the effectiveness and longevity of a building’s plumbing system. Understanding the roles and characteristics of different pipes allows for the design of efficient plumbing systems that meet the water supply and waste disposal needs of occupants. Proper planning and execution of plumbing systems are vital for the overall functionality and comfort of any building.
