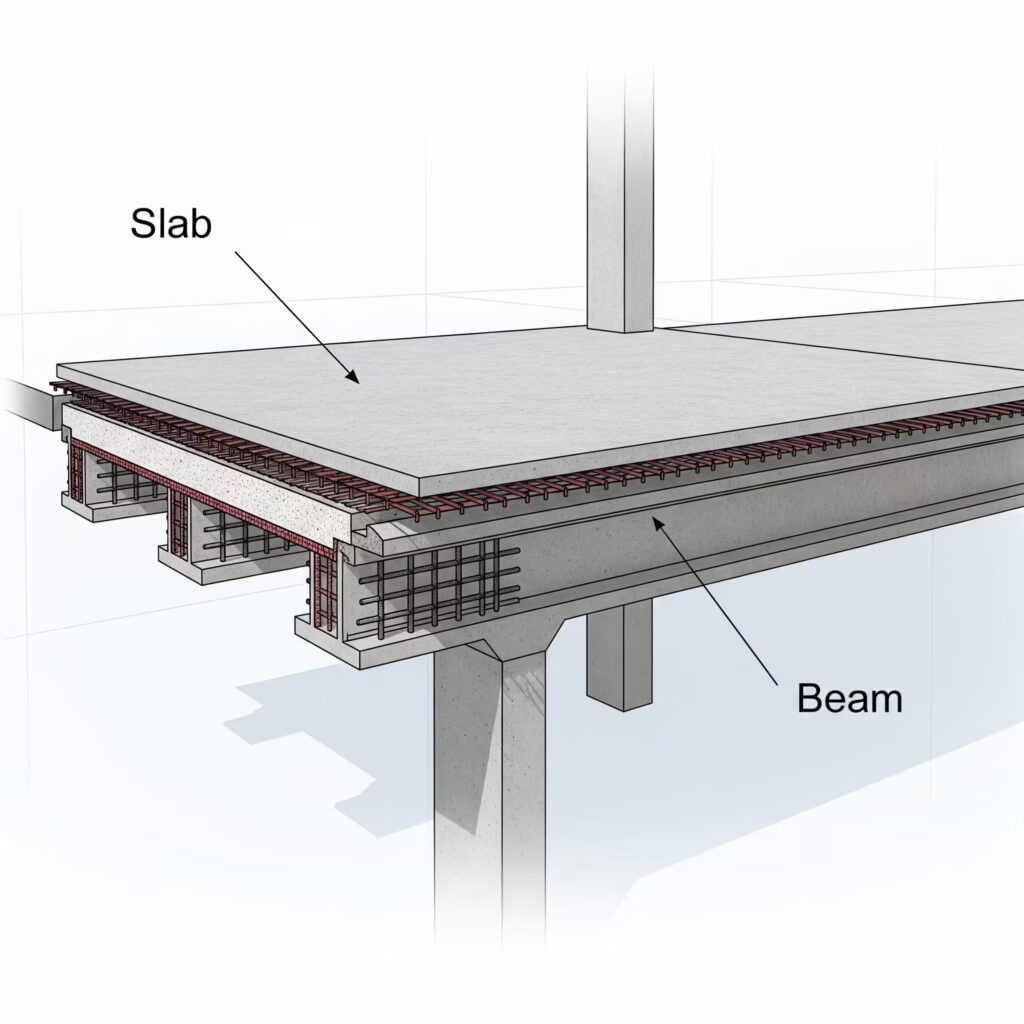

Maximum Ratios of Computed Deflection to Span (L) for Beams and Slabs as per ACI 318

Deflection control is a crucial aspect of structural design, ensuring safety, serviceability, and durability of buildings. The American Concrete Institute (ACI) 318 Code provides specific limits on deflection to prevent structural and non-structural damage. This article discusses the maximum allowable deflection ratios for beams and slabs as per ACI 318 guidelines.

Deflection Limits for Different Types of Members

Deflection limits depend on the type of structural member and whether non-structural elements are attached to or supported by the structure. The limits ensure that excessive deflection does not cause damage or functional issues.

Deflection Criteria Based on Structural Elements

Flat Roofs Without Non-Structural Attachments

  • Deflection to be considered: Immediate deflection due to live load.
  • Maximum allowable deflection: L/180.
  • Note: This limit does not account for ponding effects. Designers must check for ponding by considering additional deflections due to accumulated water and long-term effects of sustained loads.

Floors Without Non-Structural Attachments

  • Deflection to be considered: Immediate deflection due to live load.
  • Maximum allowable deflection: L/360.

Roofs and Floors Supporting or Attached to Non-Structural Elements

  • Deflection to be considered: The total deflection occurring after the attachment of non-structural elements. This includes:
    • Long-term deflection due to sustained loads.
    • Immediate deflection due to any additional live load.
  • Maximum allowable deflection: L/480.
  • Note: This limit may be exceeded if adequate precautions are taken to prevent damage to attached or supported elements.

Roofs and Floors Without Risk of Non-Structural Damage

  • Deflection to be considered: Overall deflection of the structure.
  • Maximum allowable deflection: L/240.
  • Note: The deflection should not exceed the tolerance provided for non-structural elements. This limit may also be exceeded if camber is introduced to compensate for total deflection, ensuring that the net deflection does not exceed the limitation.

Special Considerations and Notes

  • Ponding Effects: ACI 318 emphasizes that ponding in flat roofs should be accounted for through detailed deflection calculations. Additional considerations include long-term effects, construction tolerances, and material reliability.
  • Long-Term Deflection Adjustments: If deflection occurs before the attachment of non-structural elements, it can be subtracted from the total long-term deflection.
  • Camber Adjustments: The permissible deflection limit may be exceeded if an appropriate camber is provided so that the total deflection minus camber remains within the acceptable range.

Conclusion

Adhering to ACI 318 deflection limits is essential for maintaining the safety and serviceability of buildings. Engineers must carefully evaluate both immediate and long-term deflections to prevent damage to structural and non-structural elements. By considering special factors such as ponding, camber adjustments, and attachment timing, designers can ensure that buildings perform efficiently while complying with established code requirements.
