Retaining walls play a critical role in modern construction by retaining earth or other materials and maintaining different ground levels. These walls prevent the collapse of materials and help to stabilize areas with varying elevations, such as sloping terrain, basements, and bridges. While retaining walls can be made from masonry or reinforced concrete, reinforced concrete walls are preferred in many situations due to their structural efficiency and ability to resist lateral pressures through bending, rather than just weight.
In this article, we will explore the two most common types of reinforced concrete retaining walls: the cantilever retaining wall and the counterfort retaining wall. We will discuss their functions, parts, and design considerations.
Overview of Reinforced Concrete Retaining Walls
The primary function of a retaining wall is to support and retain earth, which helps to maintain different levels on either side of the wall. The material behind the wall, known as the backfill, is typically soil or another material that exerts lateral pressure on the wall. Retaining walls are commonly used in various construction scenarios such as:
- Basements below ground level,
- Wing walls of bridges,
- Roads on hilly terrain to retain slopes.
Retaining walls can be constructed using different materials. Masonry retaining walls resist lateral pressure through their weight, and as such, they tend to have a thick base and taper as they rise—this design is often referred to as a “gravity retaining wall.” On the other hand, reinforced concrete retaining walls resist lateral pressure through structural actions like bending, which allows for thinner sections compared to masonry walls.

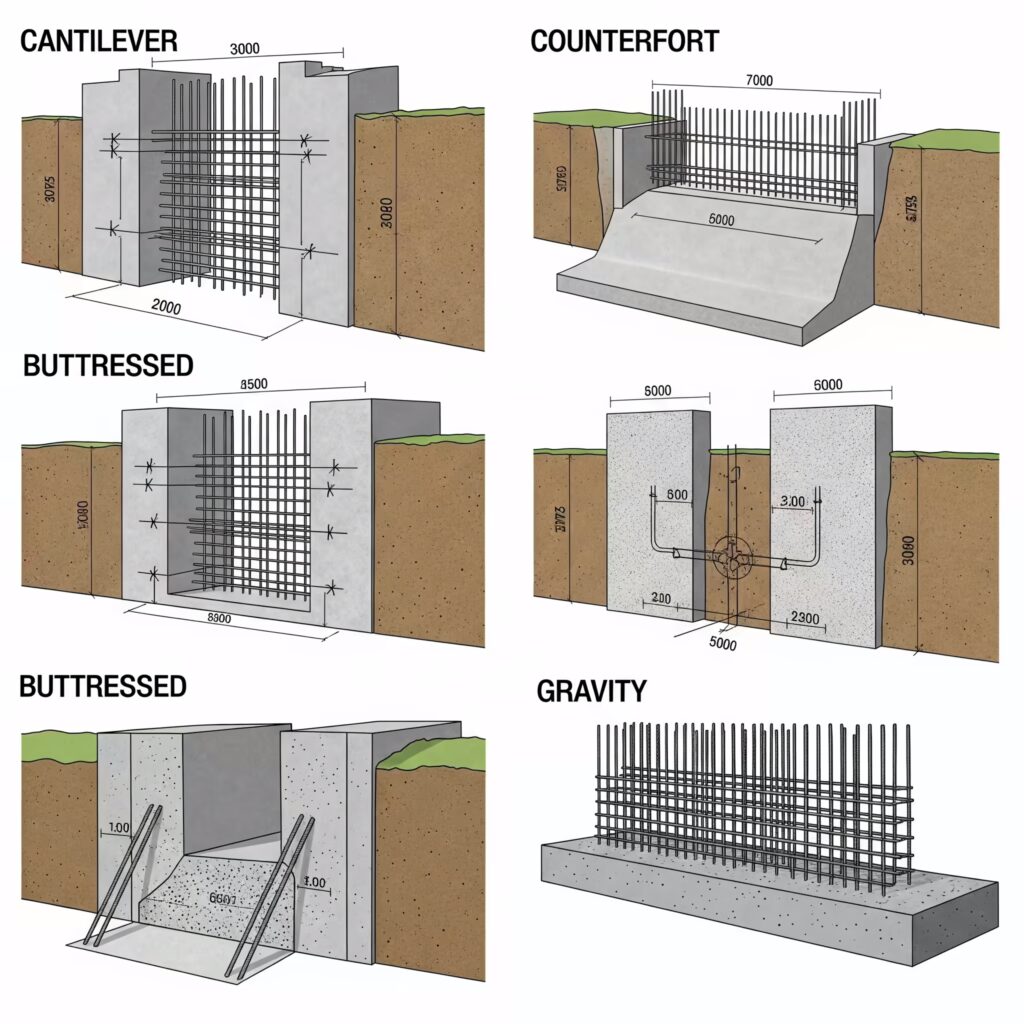

Types of Reinforced Concrete Retaining Walls
1. Cantilever Retaining Wall
The cantilever retaining wall is one of the most widely used types of reinforced concrete retaining walls. It is highly efficient for supporting moderate heights of backfill (up to 5 meters) and is designed with a structural form that maximizes its ability to resist lateral pressure while minimizing material usage.
Parts of a Cantilever Retaining Wall:
- Vertical Stem: The vertical stem of the cantilever retaining wall acts like a cantilever, resisting the lateral pressure exerted by the backfill. It is designed to be thicker at the base, where the pressure is highest, and gradually becomes thinner as it rises, reflecting the reduction in pressure with increasing depth.
- Base Slab: The base slab forms the foundation of the retaining wall and consists of two parts:
- Heel Slab: The heel slab acts as a cantilever under the combined weight of the retaining earth and the soil pressure from below. It helps resist the downward force and ensures stability.
- Toe Slab: The toe slab also behaves as a cantilever, but it resists the upward soil pressure acting from the opposite direction.
The stability of the cantilever retaining wall is achieved through the weight of the backfill earth, the self-weight of the retaining structure, and the horizontal force distribution across the base slab. Cantilever retaining walls are especially suitable for depths of backfill up to 5 meters, where the wall can efficiently resist lateral earth pressure.
2. Counterfort Retaining Wall
When the height of the retained earth exceeds 5 meters, the bending moments and forces acting on the retaining wall increase significantly. This leads to thicker structural elements, making the cantilever retaining wall uneconomical for large heights. In such cases, the counterfort retaining wall becomes a better choice.
Parts of a Counterfort Retaining Wall:
- Stem: Similar to the cantilever retaining wall, the stem of the counterfort wall resists lateral pressure. However, the stem is strengthened by the addition of counterforts, which are placed at regular intervals along the wall.
- Base Slab: Like the cantilever wall, the counterfort wall features a base slab that includes the heel slab and toe slab. These parts work together to resist lateral pressures and stabilize the structure.
- Counterforts: The key feature of the counterfort retaining wall is the inclusion of counterforts, which are vertical supports placed at intervals along the stem. The counterforts act like supports that divide the stem into smaller sections, similar to a tee-beam. This design reduces the bending moment in the stem and heel slab, allowing them to be thinner and more cost-effective.
By incorporating counterforts, the counterfort retaining wall behaves as a series of interconnected structural elements that effectively reduce the stresses acting on the wall. The counterforts improve the overall stability of the wall, making it ideal for retaining larger volumes of earth, especially when the height exceeds 5 meters.
Functions of Reinforced Concrete Retaining Walls
Reinforced concrete retaining walls are crucial in various construction applications. They serve to maintain stability in situations where there are differences in ground levels. For example, they are used in the construction of:
- Basements: Retaining walls support the earth surrounding a basement to prevent soil movement and water ingress.
- Bridge Wing Walls: These walls retain the earth at the ends of bridges, ensuring the safety and stability of the structure.
- Roads on Sloping Terrain: Retaining walls help to stabilize slopes in hilly areas, preventing landslides and soil erosion.
The design of reinforced concrete retaining walls ensures that they can withstand the lateral pressure exerted by the backfill while remaining structurally efficient. The use of reinforced concrete allows these walls to be thinner and more cost-effective compared to traditional masonry walls, especially when high lateral pressures or large volumes of retained earth are involved.
Conclusion
Reinforced concrete retaining walls are essential structural elements in modern construction, particularly when it comes to managing uneven ground levels. The cantilever retaining wall is suitable for moderate heights of backfill (up to 5 meters), while the counterfort retaining wall is more appropriate for larger retaining heights, providing cost-effective solutions for larger structures. The choice between these two types depends on the height of the earth to be retained, the forces involved, and the overall design considerations. Reinforced concrete retaining walls, with their ability to resist lateral pressure through bending and their structural efficiency, are a key component in ensuring stability and safety in construction projects.
